Golf Impact Projection Material For DIY Projects
GolfSim DIY Screen Series

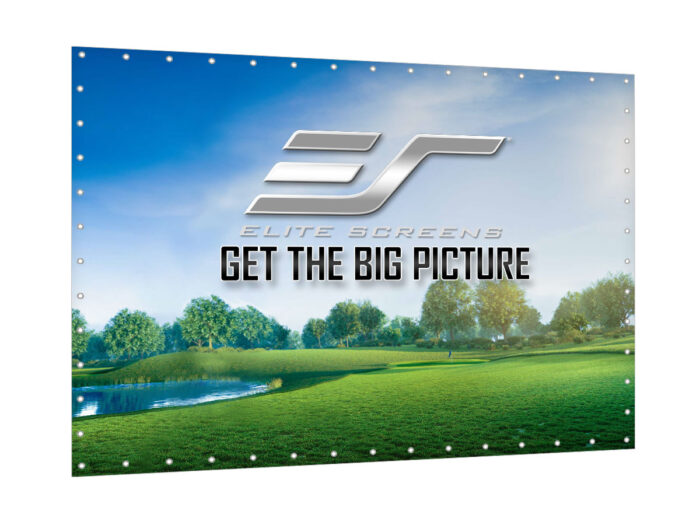

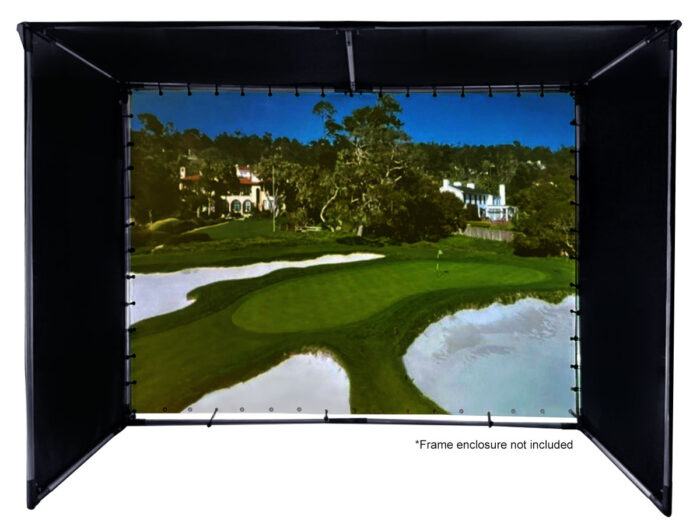

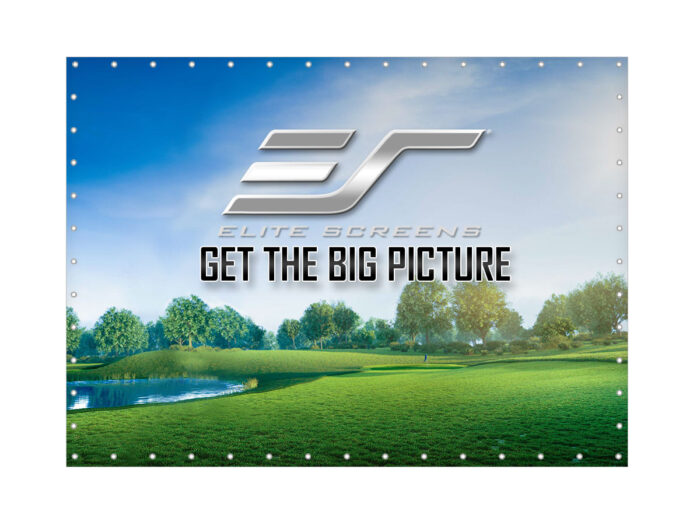

The GolfSim DIY Screen is a golf impact front projection material for golf simulator enclosures. It is a Do-it-Yourself (DIY) design that includes metal grommets all around the entire material to ensure the material is equally tensioned on all sides and perfect for custom frame golf /sport simulation enclosures.
*We consider our impact screens a wearable item and the life of them will vary according to their use. Avoid using golf balls with scuffs or markings to maximize the life of the screen. If possible, use new golf balls. Some creasing may occur but may be removed with a steamer and/or light ironing set to no higher than Polyester.

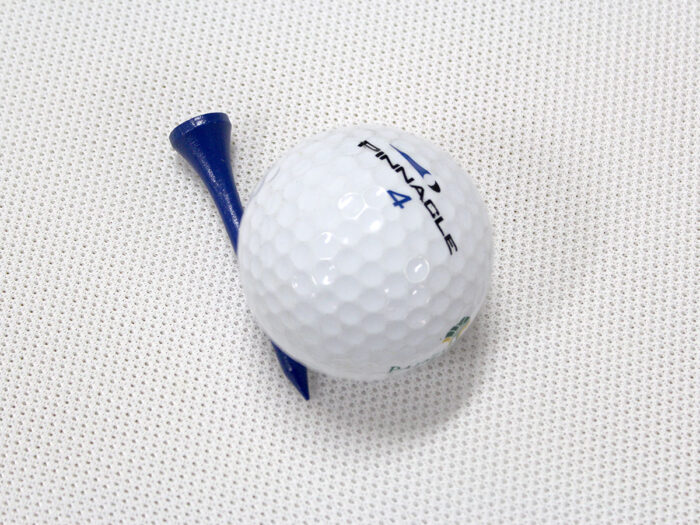

Product Features – ImpactWhite® 1145
The ImpactWhite® 1145 is a multi-layer warp knitted fabric formulated for maximum strength to withstand golf ball impact while providing the highest image quality, and longevity.
Screen Material Design and Installation
- ImpactWhite® 1145 golf impact front projection material
- ISF Certified for Accurate Color Reproduction
- Resists indentations from golf impact and withstands ball speeds up to 200 mph.
- Withstands up to 1,062 continuous golf ball strikes on same spot at 160 mph
- Average impact rebound less than 1.6 feet

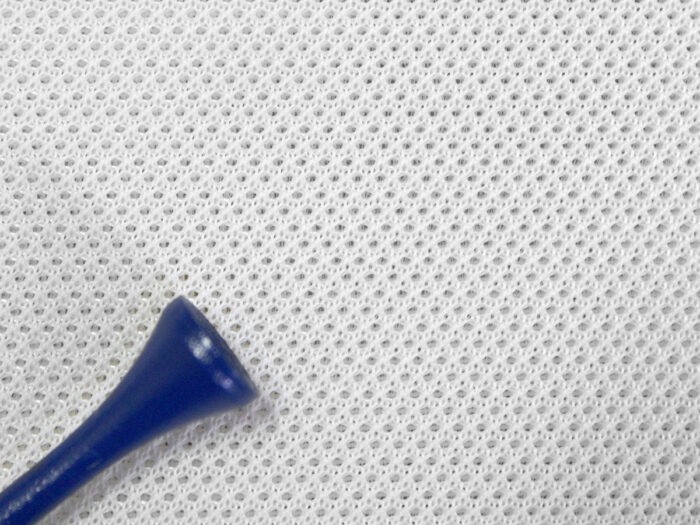

- 4.5 mm warp knitted fabric is comprised of three layers for maximum performance in image quality, shock absorption, and endurance
- Internal spacer suppresses and dampens the noise generated when golf ball impacts screen
- High-strength warp knitted fabric absorbs impact reducing ball bounce back
- Allows a clear and sharp presentation without loss of image fidelity
- Professionally engineered projection surface performs at a theater-grade level

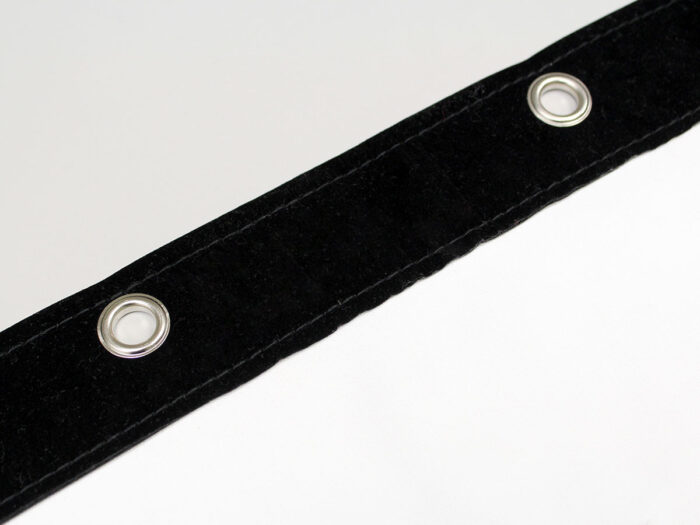

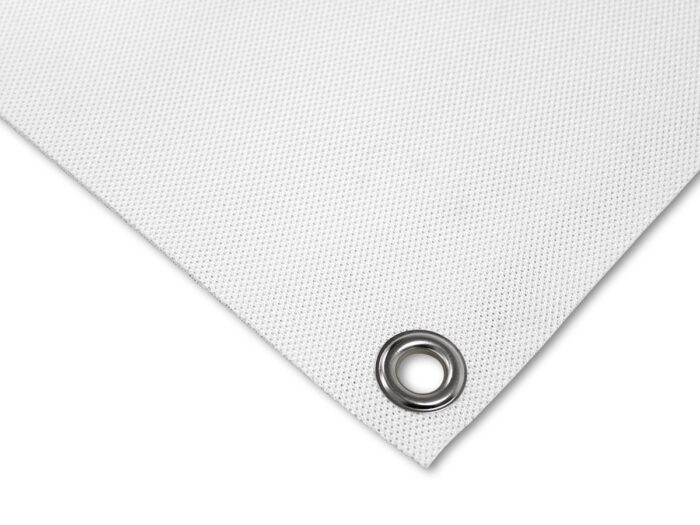

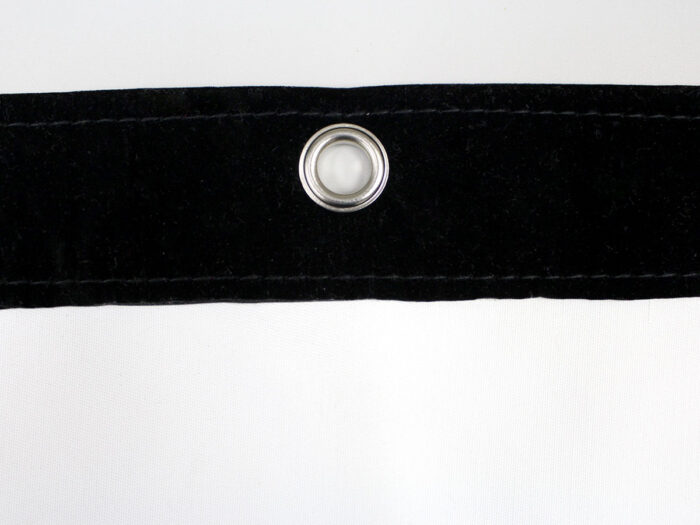

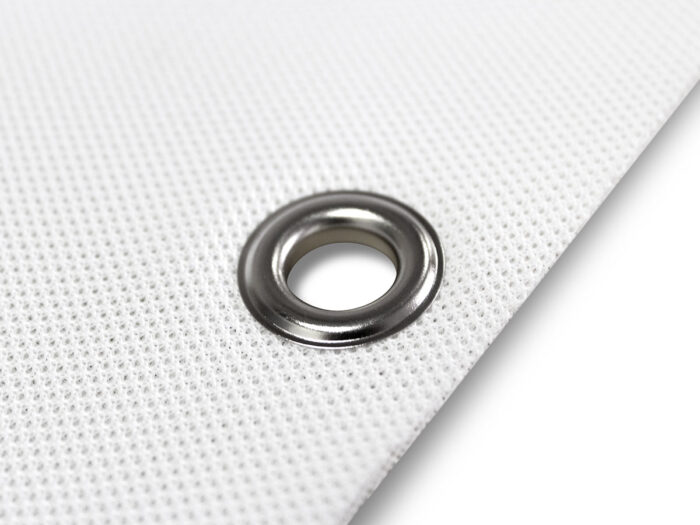

- Metal grommets surround entire material which allows material to be equally tensioned on all sides
- Works best with short throw projectors to avoid casting shadows and sufficient space for golf ball bounce back
- 4K/8K Ultra HD, Active 3D and HDR Ready
- ImpactWhite™ 1145 available in the following sizes:
- 10’ x 8’
- 10’ x 9.8’
- 10’ x 13.1’
- 10’ x 19.6’

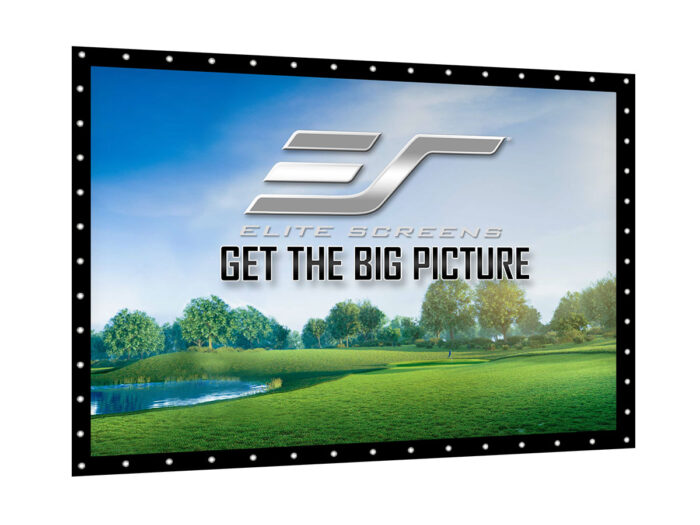

Product Features – ImpactWhite® 360
Screen Material

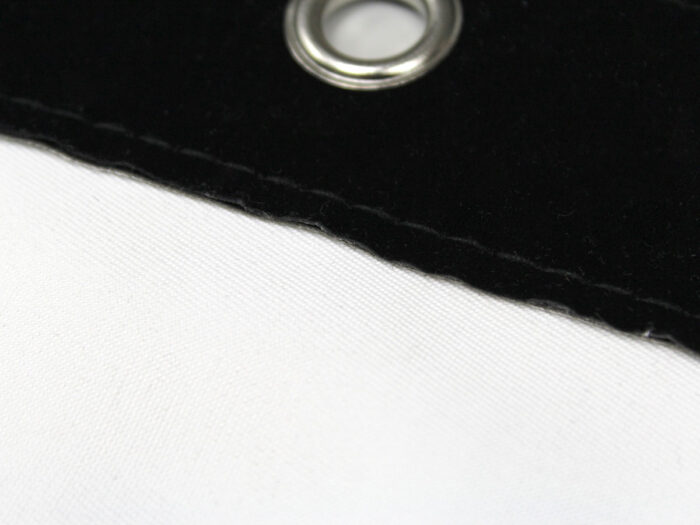

- ImpactWhite® 360 golf impact front projection screen material
- 1.0 gain with a 180° wide viewing angle allows viewers to see a clear bright uniform picture from any angle
- Resists golf impact and withstands ball speeds up to 200 mph.
- 1.2 mm tightly woven polyester material offers minimal impact noise and bounce back
- ISF Certified for accurate color reproduction – An industry standard for high-fidelity video display systems
- Allows a clear and sharp presentation without loss of image fidelity
- Designed and engineered to perform to high-level industry standards for cinema quality presentations
Design & Installation
- Lightweight aluminum folding-frame design quickly assembles in minutes with no special tools required.
- Includes top, left/right enclosure cover panels and side triangular net extensions.
- Impact screen attaches to frame using Velcro and ball bungees to provide a flat and taut surface
- Includes hook and loop strips to provide additional tension to the impact screen surface
- Traveler-friendly carrying bag included stores entire product for maximum portability and storage.
Quality and Reliability
- 2-year limited warranty, and 3-year warranty for ENR-G – Education, Non-profit, Religious and Government/Military organizations
- Lifetime Tech Support by Elite Screens Professional Service Team through Email, Phone or Online Form.
